| Light Source | 2835 |
|---|---|
| CCT | 4000K |
| CRI Range | 80/90/95 |
| AC Input | 220-240V |
| Light Efficiency | 150Lm/W |
| Power Efficiency | >0.87 |
| Beam Angle | 120° |
| Ratings | IP65 waterproof & IK08 impact resistant |
| Recommended Installation Height | 2-15M |

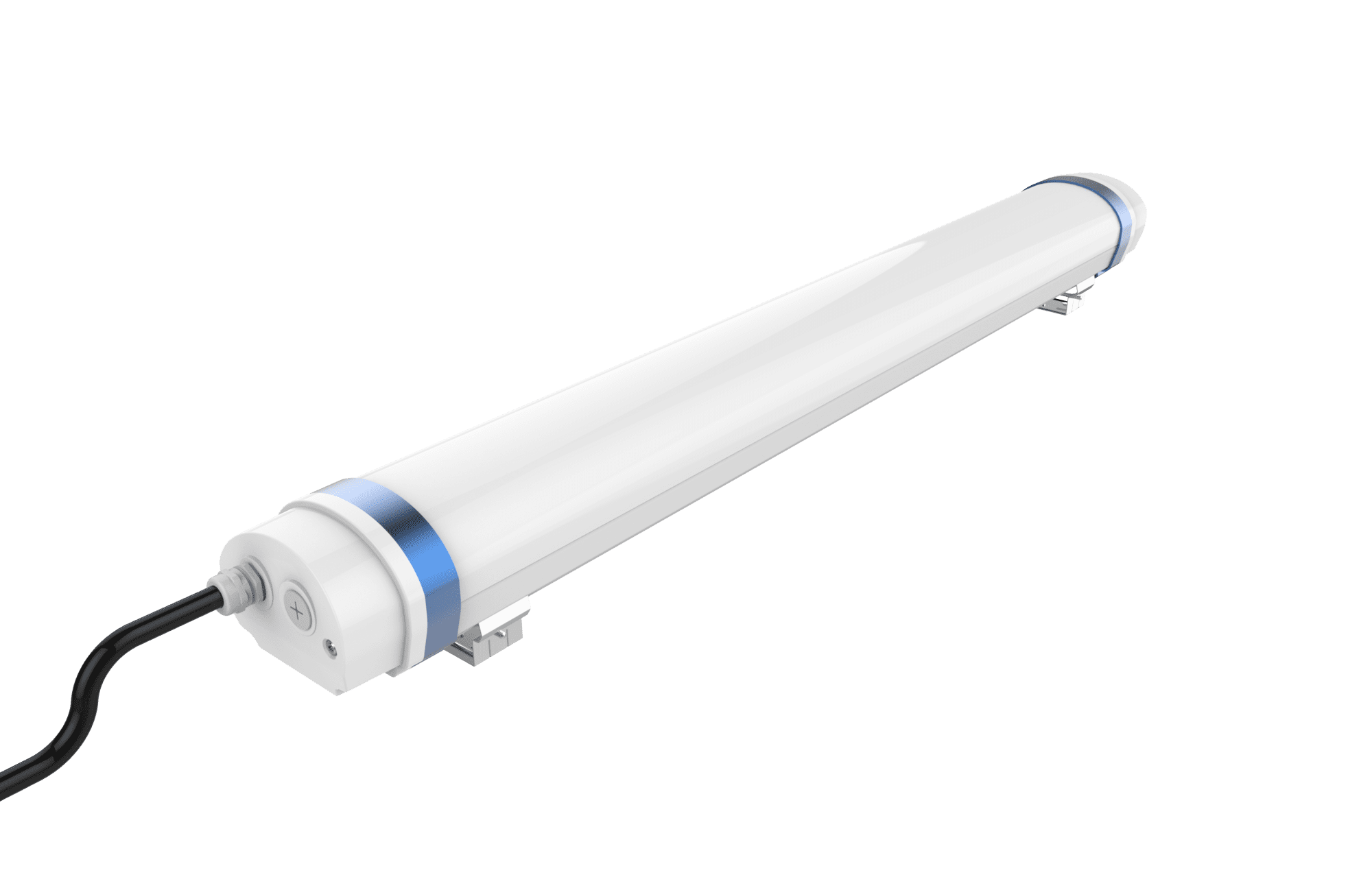

The Titan Heavy is a heavyweight alternative to our Titan luminaire. This high-powered substitute is suitable for all of the same applications but on a larger scale, with more intense operating requirements. With a higher recommended installation height of between 2-15 meters and greater light efficiency, this luminaire is perfect for the same industrial and commercial applications as the Titan LED within a medium to large operating area.
Optional functions
- Dimmable
- Emergency
- Motion Sensor
Specifications
| Model | Power (W) | Lumens | Lm/W |
|---|---|---|---|
| Titan Heavy 4FT | 60 | 9000 | 150 |
| Titan Heavy 4FT – A | 80 | 12000 | 150 |
| Titan Heavy 5FT | 80 | 12000 | 150 |
| Titan Heavy 5FT – A | 100 | 15000 | 150 |
Dimensions
| Model | Length (mm) | Height (mm) | Depth (mm) |
|---|---|---|---|
| Titan Heavy 4FT | 1200 | 83 | 109 |
| Titan Heavy 4FT – A | 1200 | 83 | 109 |
| Titan Heavy 5FT | 1500 | 83 | 109 |
| Titan Heavy 5FT – A | 1500 | 83 | 109 |
